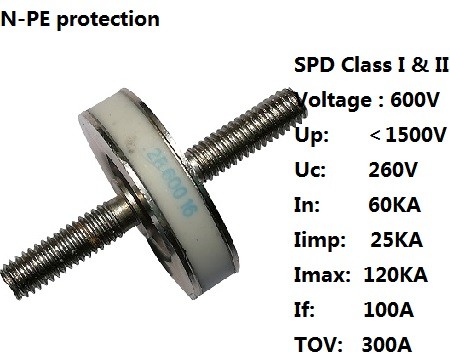

Φ30x7.3mm - H2R30-600x

Dc spark-over voltage (100V/s)      1)

600V ±20%

Maximum impulse spark-over voltage @ 1KV/μs

1400V

Breakdown time

           - typical values

＜100ns

＜20ns

Insulation resistance @DC250V

  1000MΩ

Class I  according to IEC 61643-11

Max continuous operating voltage at 50/60 Hz           Uc

Nominal discharge current 8/20μs                                In

Impulse current 10/350μs                                              Iimp

Follow Current at 50/60Hz at 260V                                If

260V

60KA

25KA

100A

Class II  according to IEC 61643-11

Max continuous operating voltage at 50/60 Hz           Uc

Nominal discharge current 8/20μs                                In

Maximum discharge current 8/20μs                            Imax

Follow Current at 50/60Hz at 260V                               If

260V

60KA

120KA

100A

AC discharge current (TOV at 1200V ,1 operation 50Hz,0.2 s)

＜300A

capacitance at 1MHz

＜6pF

Weight

~ 27g

UL 1449 Certification

On the UL List

Delivery time

20days

Operation and storage temperature

-40℃ … +90℃

Marking, Blue

Approvals/ Standards   EN61643-311   ITU-T Rec. K.12

2R 600 YY

600 - Nominal voltage

YY - Year of production
