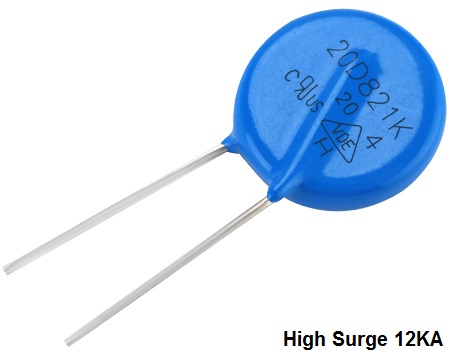

20D Series

Varistor Voltage: 22V~1800V
Max Surge Current: 12KA
Products Size: 20mm

Datasheet

Description

Part Number 20D ,12KA	Maximum Allowable Voltage		Varistor Voltage	Maximum Clamping Voltage	Surge Current 8/20μs		Delivery time
	VAC	VDC	V1mA	VC	1time	2times	days
VDR-20D220KJ2	14V	18V	22V(19.8~24.2)	43V	4KA	3KA	14Days
VDR-20D270KJ2	17V	22V	27V(24.3~29.7)	53V	4KA	3KA	14Days
VDR-20D330KJ2	20V	26V	33V(29.7~36.3)	66V	4KA	3KA	14Days
VDR-20D390KJ2	25V	31V	39V(35.1~42.9)	77V	4KA	3KA	14Days
VDR-20D470KJ2	30V	38V	47V(42.3~51.7)	93V	4KA	3KA	14Days
VDR-20D560KJ2	35V	45V	56V(50.4~61.6)	100V	4KA	3KA	14Days
VDR-20D680KJ2	40V	56V	68V(61.2~74.8)	135V	4KA	3KA	14Days
VDR-20D820KJ2	50V	65V	82V(73.8~90.2)	135V	12KA	6.5KA	14Days
VDR-20D101KJ2	60V	85V	100V(90~110)	165V	12KA	6.5KA	14Days
VDR-20D121KJ2	75V	100V	120V(108~132)	200V	12KA	6.5KA	14Days
VDR-20D151KJ2	95V	125V	150V(135~165)	250V	12KA	6.5KA	14Days
VDR-20D181KJ2	115V	150V	180V(162~198)	300V	12KA	6.5KA	14Days
VDR-20D201KJ2	130V	170V	200V(180~220)	340V	12KA	6.5KA	14Days
VDR-20D221KJ2	140V	180V	220V(198~242)	360V	12KA	6.5KA	14Days
VDR-20D241KJ2	150V	200V	240V(216~264)	395V	12KA	6.5KA	14Days
VDR-20D271KJ2	175V	225V	270V(243~297)	455V	12KA	6.5KA	14Days
VDR-20D301KJ2	190V	250V	300V(270~330)	500V	12KA	6.5KA	14Days
VDR-20D331KJ2	210V	275V	330V(297~363)	550V	12KA	6.5KA	14Days
VDR-20D361KJ2	230V	300V	360V(324~396)	595V	12KA	6.5KA	14Days
VDR-20D391KJ2	250V	320V	390V(351~429)	650V	12KA	6.5KA	14Days
VDR-20D431KJ2	275V	350V	430V(387~473)	710V	12KA	6.5KA	14Days
VDR-20D471KJ2	300V	385V	470V(423~517)	775V	12KA	6.5KA	14Days
VDR-20D511KJ2	320V	415V	510V(459~561)	845V	12KA	6.5KA	14Days
VDR-20D561KJ2	350V	460V	560V(504~616)	925V	12KA	6.5KA	14Days
VDR-20D621KJ2	385V	505V	620V(558~682)	1025V	12KA	6.5KA	14Days
VDR-20D681KJ2	420V	560V	680V(612~748)	1120V	12KA	6.5KA	14Days
VDR-20D751KJ2	460V	615V	750V(675~825)	1240V	12KA	6.5KA	14Days
VDR-20D781KJ2	485V	640V	780V(702~858)	1290V	12KA	6.5KA	14Days
VDR-20D821KJ2	510V	670V	820V(738~902)	1355V	12KA	6.5KA	14Days
VDR-20D911KJ2	550V	745V	910V(819~1001)	1500V	12KA	6.5KA	14Days
VDR-20D102KJ2	625V	825V	1000V(900~1100)	1650V	12KA	6.5KA	14Days
VDR-20D112KJ2	680V	895V	1100V(990~1210)	1815V	12KA	6.5KA	14Days
VDR-20D122KJ2	750V	990V	1200V(1080~1320)	1980V	12KA	6.5KA	14Days
VDR-20D182KJ2	1000V	1465V	1800V(1620~1980)	2970V	12KA	6.5KA	14Days
