Varistor Voltage: 18V~1800V
Max Surge Current: 1000A~6000A
Products Size: 14mm

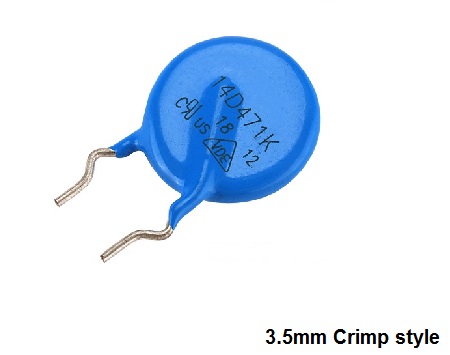

Lead Wire length: 3.5mm
Crimp Style
|
Part Number Standard 14D |
Maximum Allowable Voltage |
Varistor Voltage |
Maximum Clamping Voltage |
Max Surge Current 8/20μs |
Certification |
Delivery time |
||
|
VAC |
VDC |
V1mA |
VC |
Imax |
UL |
VDE |
days |
|
11V |
14V |
18V(15.3~20.7) |
36V |
1000A |
√ |
√ |
14days |
|
|
14V |
18V |
22V(19.8~24.2) |
43V |
1000A |
√ |
√ |
14days |
|
|
17V |
22V |
27V(24.3~29.7) |
53V |
1000A |
√ |
√ |
14days |
|
|
20V |
26V |
33V(29.7~36.3) |
66V |
1000A |
√ |
√ |
14days |
|
|
25V |
31V |
39V(35.1~42.9) |
77V |
1000A |
√ |
√ |
14days |
|
|
30V |
38V |
47V(42.3~51.7) |
93V |
1000A |
√ |
√ |
14days |
|
|
35V |
45V |
56V(50.4~61.6) |
100V |
1000A |
√ |
√ |
14days |
|
|
40V |
56V |
68V(61.2~74.8) |
135V |
1000A |
√ |
√ |
14days |
|
|
50V |
65V |
82V(73.8~90.2) |
135V |
4500A |
√ |
√ |
14days |
|
|
60V |
85V |
100V(90~110) |
165V |
4500A |
√ |
√ |
14days |
|
|
75V |
100V |
120V(108~132) |
200V |
4500A |
√ |
√ |
14days |
|
|
95V |
125V |
150V(135~165) |
250V |
4500A |
√ |
√ |
14days |
|
|
115V |
150V |
180V(162~198) |
300V |
4500A |
√ |
√ |
14days |
|
|
130V |
170V |
200V(180~220) |
340V |
4500A |
√ |
√ |
14days |
|
|
140V |
180V |
220V(198~242) |
360V |
4500A |
√ |
√ |
14days |
|
|
150V |
200V |
240V(216~264) |
395V |
4500A |
√ |
√ |
14days |
|
|
175V |
225V |
270V(243~297) |
455V |
4500A |
√ |
√ |
14days |
|
|
190V |
250V |
300V(270~330) |
500V |
4500A |
√ |
√ |
14days |
|
|
210V |
275V |
330V(297~363) |
550V |
4500A |
√ |
√ |
14days |
|
|
230V |
300V |
360V(324~396) |
595V |
4500A |
√ |
√ |
14days |
|
|
250V |
320V |
390V(351~429) |
650V |
4500A |
√ |
√ |
14days |
|
|
275V |
350V |
430V(387~473) |
710V |
4500A |
√ |
√ |
14days |
|
|
300V |
385V |
470V(423~517) |
775V |
4500A |
√ |
√ |
14days |
|
|
320V |
415V |
510V(459~561) |
845V |
4500A |
√ |
√ |
14days |
|
|
350V |
460V |
560V(504~616) |
925V |
4500A |
√ |
√ |
14days |
|
|
385V |
505V |
620V(558~682) |
1025V |
4500A |
√ |
√ |
14days |
|
|
420V |
560V |
680V(612~748) |
1120V |
4500A |
√ |
√ |
14days |
|
|
460V |
615V |
750V(675~825) |
1240V |
4500A |
√ |
√ |
14days |
|
|
485V |
640V |
780V(702~858) |
1290V |
4500A |
√ |
√ |
14days |
|
|
510V |
670V |
820V(738~902) |
1355V |
4500A |
√ |
√ |
14days |
|
|
550V |
745V |
910V(819~1001) |
1500V |
4500A |
√ |
√ |
14days |
|
|
625V |
825V |
1000V(900~1100) |
1650V |
4500A |
√ |
√ |
14days |
|
|
680V |
895V |
1100V(990~1210) |
1815V |
4500A |
√ |
√ |
14days |
|
|
750V |
990V |
1200V(1080~1320) |
1980V |
4500A |
√ |
- |
14days |
|
|
1000V |
1465V |
1800V(1620~1980) |
2970V |
4500A |
√ |
- |
14days |
|
|
High Surge 14D MOV |
||||||||
|
Part Number High Surge 14D |
Maximum Allowable Voltage |
Varistor Voltage |
Maximum Clamping Voltage |
Max Surge Current 8/20μs |
Certification |
Delivery time |
||
|
VAC |
VDC |
V1mA |
VC |
Imax |
UL |
VDE |
days |
|
11V |
14V |
18V(15.3~20.7) |
36V |
2000A |
√ |
√ |
14days |
|
|
14V |
18V |
22V(19.8~24.2) |
43V |
2000A |
√ |
√ |
14days |
|
|
17V |
22V |
27V(24.3~29.7) |
53V |
2000A |
√ |
√ |
14days |
|
|
20V |
26V |
33V(29.7~36.3) |
66V |
2000A |
√ |
√ |
14days |
|
|
25V |
31V |
39V(35.1~42.9) |
77V |
2000A |
√ |
√ |
14days |
|
|
30V |
38V |
47V(42.3~51.7) |
93V |
2000A |
√ |
√ |
14days |
|
|
35V |
45V |
56V(50.4~61.6) |
100V |
2000A |
√ |
√ |
14days |
|
|
40V |
56V |
68V(61.2~74.8) |
135V |
2000A |
√ |
√ |
14days |
|
|
50V |
65V |
82V(73.8~90.2) |
135V |
6000A |
√ |
√ |
14days |
|
|
60V |
85V |
100V(90~110) |
165V |
6000A |
√ |
√ |
14days |
|
|
75V |
100V |
120V(108~132) |
200V |
6000A |
√ |
√ |
14days |
|
|
95V |
125V |
150V(135~165) |
250V |
6000A |
√ |
√ |
14days |
|
|
115V |
150V |
180V(162~198) |
300V |
6000A |
√ |
√ |
14days |
|
|
130V |
170V |
200V(180~220) |
340V |
6000A |
√ |
√ |
14days |
|
|
140V |
180V |
220V(198~242) |
360V |
6000A |
√ |
√ |
14days |
|
|
150V |
200V |
240V(216~264) |
395V |
6000A |
√ |
√ |
14days |
|
|
175V |
225V |
270V(243~297) |
455V |
6000A |
√ |
√ |
14days |
|
|
190V |
250V |
300V(270~330) |
500V |
6000A |
√ |
√ |
14days |
|
|
210V |
275V |
330V(297~363) |
550V |
6000A |
√ |
√ |
14days |
|
|
230V |
300V |
360V(324~396) |
595V |
6000A |
√ |
√ |
14days |
|
|
250V |
320V |
390V(351~429) |
650V |
6000A |
√ |
√ |
14days |
|
|
275V |
350V |
430V(387~473) |
710V |
6000A |
√ |
√ |
14days |
|
|
300V |
385V |
470V(423~517) |
775V |
6000A |
√ |
√ |
14days |
|
|
320V |
415V |
510V(459~561) |
845V |
6000A |
√ |
√ |
14days |
|
|
350V |
460V |
560V(504~616) |
925V |
6000A |
√ |
√ |
14days |
|
|
385V |
505V |
620V(558~682) |
1025V |
6000A |
√ |
√ |
14days |
|
|
420V |
560V |
680V(612~748) |
1120V |
6000A |
√ |
√ |
14days |
|
|
460V |
615V |
750V(675~825) |
1240V |
6000A |
√ |
√ |
14days |
|
|
485V |
640V |
780V(702~858) |
1290V |
6000A |
√ |
√ |
14days |
|
|
510V |
670V |
820V(738~902) |
1355V |
6000A |
√ |
√ |
14days |
|
|
550V |
745V |
910V(819~1001) |
1500V |
6000A |
√ |
√ |
14days |
|
|
625V |
825V |
1000V(900~1100) |
1650V |
6000A |
√ |
√ |
14days |
|
|
680V |
895V |
1100V(990~1210) |
1815V |
6000A |
√ |
√ |
14days |
|
|
750V |
990V |
1200V(1080~1320) |
1980V |
6000A |
√ |
- |
14days |
|
|
1000V |
1465V |
1800V(1620~1980) |
2970V |
6000A |
√ |
- |
14days |
|
