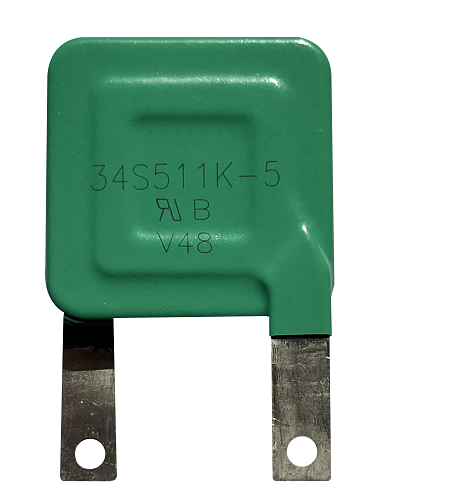

34S Series - Imax:75KA
Voltage: 240V~1200V
150Vac ~ 750Vac
200Vdc ~ 980Vdc
In 8x20μs: 30KA~35KA
Imax 8x20μs: 70KA~75KA
|
Part number |
Maximum Allowable Voltage |
Varistor Voltage |
Maximum Clamping Voltage |
Nominal discharge current (8/20μs) IEC 61643-11 |
Maximum Discharge Current(8/20μs) IEC61643-11 |
Certification |
||
|
VAC .rms |
VDC |
V1.0mA(V) |
IP(A) |
VC(V) |
In. 10times |
Imax 1time |
UL /CUL |
|
|
150V |
200V |
240V(222~270) |
300A |
395V |
30KA/35KA |
70KA/75KA |
√ |
|
|
180V |
225V |
270V(256~310) |
300A |
455V |
30KA/35KA |
70KA/75KA |
√ |
|
|
190V |
250V |
300V(270~330) |
300A |
500V |
30KA/35KA |
70KA/75KA |
√ |
|
|
210V |
275V |
330V(297~363) |
300A |
550V |
30KA/35KA |
70KA/75KA |
√ |
|
|
230V |
300V |
360V(324~396) |
300A |
595V |
30KA/35KA |
70KA/75KA |
√ |
|
|
250V |
320V |
390V(362~440) |
300A |
650V |
30KA/35KA |
70KA/75KA |
√ |
|
|
275V |
350V |
430V(387~473) |
300A |
710V |
30KA/35KA |
70KA/75KA |
√ |
|
|
300V |
385V |
470V(423~517) |
300A |
775V |
30KA/35KA |
70KA/75KA |
√ |
|
|
320V |
415V |
510V(459~561) |
300A |
845V |
30KA/35KA |
70KA/75KA |
√ |
|
|
350V |
460V |
560V(504~616) |
300A |
925V |
30KA/35KA |
70KA/75KA |
√ |
|
|
385V |
505V |
620V(558~682) |
300A |
1025V |
30KA/35KA |
70KA/75KA |
√ |
|
|
420V |
560V |
680V(612~748) |
300A |
1120V |
30KA/35KA |
70KA/75KA |
√ |
|
|
440V |
585V |
710V(644~786) |
300A |
1180V |
30KA/35KA |
70KA/75KA |
√ |
|
|
460V |
615V |
750V(675~825) |
300A |
1240V |
30KA |
75KA |
√ |
|
|
485V |
640V |
780V(702~858) |
300A |
1290V |
30KA |
75KA |
√ |
|
|
510V |
670V |
820V(738~902) |
300A |
1355V |
30KA |
75KA |
√ |
|
|
550V |
745V |
910V(819~1001) |
300A |
1500V |
25KA |
65KA |
√ |
|
|
575V |
760V |
950V(855~1045) |
300A |
1570V |
25KA |
65KA |
√ |
|
|
625V |
825V |
1000V(900~1100) |
300A |
1650V |
25KA |
65KA |
√ |
|
|
680V |
895V |
1100V(990~1210) |
300A |
1815V |
25KA |
65KA |
√ |
|
|
750V |
980V |
1200V(1080~1320) |
300A |
1980V |
25KA |
65KA |
√ |
|
