HuaXingAn GDT for SPD

Datasheet

Description

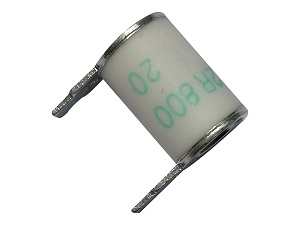

HuaXingAn GDT for SPD

Applications Concise Table

N0	Product Model	Dc spark over voltage	In 8/20μs	Imax 8/20μs	Iimp 10/350μs	TOV 1200V 0.2S	If	Body Size	Application
1	H5R16-600L/800L	600V/800V	30KA	60KA	12KA	N/A	500A	Φ16 × 18.2	Class I &II L-N
									Class I &II L-N
2	H6R20S-600L/800L	600V/800V	25KA	50KA	25KA	N/A	500A	Φ20 × 21	Class I &II L-N
									Class I &II L-N
3	H6R20-600L/800L	600V/800V	25KA	50KA	25KA	N/A	500A	Φ20 × 28.5	Class I &II L-N
									Class I &II L-N
4	H4R30-600L/800L	600V/800V	50KA	100KA	30KA	N/A	1000A	Φ30 × 31.5	Class I &II L-N
									Class I &II L-N
N0	Product Model	Dc spark over voltage	In 8/20μs	Imax 8/20μs	Iimp 10/350μs	TOV 1200V 0.2S	If	Body Size	Application
5	H2R12-500xx/600xx/800xx	500V/600V/800V	20KA	40KA	12KA	300A	100A	Φ11.8 × 17.2	Class I &II N-PE
									Class I &II N-PE
6	H2R12-600VE/800VE	600V/800V	40KA	60KA	12KA	300A	100A	Φ11.8 × 17.8	Class I &II N-PE
									Class I &II N-PE
7	H2R12-600xE/800xE	600V/800V	60KA	80KA	12.5KA	300A	100A	Φ11.8 × 18.0	Class I &II N-PE
									Class I &II N-PE
8	H2R12-600xx/800xx	600V/800V	20KA	40KA	8KA	300A	100A	Φ12 × 6.5	Class I &II N-PE
									Class I &II N-PE
N0	Product Model	Dc spark over voltage	In 8/20μs	Imax 8/20μs	Iimp 10/350μs	TOV 1200V 0.2S	If	Body Size	Application
9	H2R16-600xx/800xx	600V/800V	30KA	60KA	12KA	300A	100A	Φ16 × 4.5	Class I &II N-PE
									Class I &II N-PE
10	H2R20-600VE/800VE	600V/800V	40KA	60KA	25KA	300A	100A	Φ20 × 5.7	Class I &II N-PE
									Class I &II N-PE
11	H2R20-600xx/800xx	600V/800V	30KA	60KA	20KA	300A	100A	Φ20 × 4.2	Class I &II N-PE
									Class I &II N-PE
12	H2R25-600L/800L	600V/800V	100KA	150KA	50KA	300A	100A	Φ25 × 21.5	Class I &II N-PE
									Class I &II N-PE
N0	Product Model	Dc spark over voltage	In 8/20μs	Imax 8/20μs	Iimp 10/350μs	TOV 1200V 0.2S	If	Body Size	Application
13	H2R25S-600L/800L	600V/800V	50KA	100KA	30KA	300A	100A	Φ25 × 6.5	Class I &II N-PE
									Class I &II N-PE
14	H2R30-600x/800x	600V/800V	60KA	120KA	30KA	300A	100A	Φ30 × 7.3	Class I &II N-PE
									Class I &II N-PE
15	H2R30S-600/800	600V/800V	50KA	100KA	50KA	300A	100A	Φ30 × 12.4	Class I &II N-PE
									Class I &II N-PE
16	H2R30-600/800	600V/800V	100KA	200KA	100KA	300A	100A	Φ30 × 28.5	Class I &II N-PE
									Class I &II N-PE
