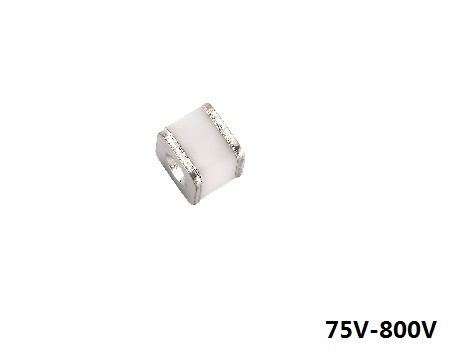

5.0x5.0x4.2mm - 5KA

Size:5.0x5.0x4.2mm

Voltage: 75V~800V

@8/20μs: 5KA

UL: E505240

Datasheet

Description

Part Number	DC Spark-over Voltage	Impulse Spark-over Voltage	Impulse Spark-over Voltage	Impulse discharge current 8/20μs	Delivery time	UL Certificate
	@100V/S	@100V/μs	@1KV/μs	10 Times	days	UL497B
HA2R5-75E	75V ±20%	<600V	<650V	5KA	10days	E505240
HA2R5-90E	90V ±20%	<600V	<650V	5KA	10days	E505240
HA2R5-150E	150 V±20%	<600V	<650V	5KA	10days	E505240
HA2R5-230E	230V ±20%	<600V	<700V	5KA	10days	E505240
HA2R5-350E	350V ±20%	<750V	≤ 950V	5KA	10days	E505240
HA2R5-420E	420V ±20%	<900V	≤ 1000V	5KA	10days	E505240
HA2R5-470E	470V ±20%	<1050V	≤ 1200V	5KA	10days	E505240
HA2R5-600E	600V ±20%	<1200V	≤ 1400V	5KA	10days	E505240
HA2R5-800E	800V ±20%	<1400V	≤ 1600V	5KA	10days	---
