Your Current Location >Home > 产品中心 > 瞬态抑制二极管 > SMAJ - 400W

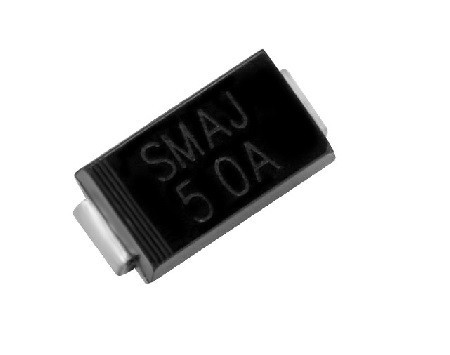

SMAJ - 400W

Package:  SMA
Power:  400W
Voltage:  3.3V~440V

Datasheet

Description

Part Number		Reverse Stand-Off Voltage	Breakdown Voltage VBR(V)		Maximum Clamping Voltage	Peak Pulse Current	Certification	Delivery Time
Uni-Polar	Bi-polar	VRWM	Min	Max	VC(V)	IPP(A)	UL	days
SMAJ3.3A	----	3.3V	5.0	5.8	7.6V	52.6	-	7days
SMAJ5.0A	SMAJ5.0CA	5.0V	6.40	7.00	9.2V	43.5	√	7days
SMAJ6.0A	SMAJ6.0CA	6.0V	6.67	7.37	10.3V	38.8	√	7days
SMAJ6.5A	SMAJ6.5CA	6.5V	7.22	7.98	11.2V	35.7	√	7days
SMAJ7.0A	SMAJ7.0CA	7.0V	7.78	8.60	12.0V	33.3	√	7days
SMAJ7.5A	SMAJ7.5CA	7.5V	8.33	9.21	12.9V	31.0	√	7days
SMAJ8.0A	SMAJ8.0CA	8.0V	8.89	9.83	13.6V	29.4	√	7days
SMAJ8.5A	SMAJ8.5CA	8.5V	9.44	10.40	14.4V	27.8	√	7days
SMAJ9.0A	SMAJ9.0CA	9.0V	10.0	11.10	15.4V	26.0	√	7days
SMAJ10A	SMAJ10CA	10V	11.1	12.3	17.0V	23.5	√	7days
SMAJ11A	SMAJ11CA	11V	12.2	13.5	18.2V	22.0	√	7days
SMAJ12A	SMAJ12CA	12V	13.3	14.7	19.9V	20.1	√	7days
SMAJ13A	SMAJ13CA	13V	14.4	15.9	21.5V	18.6	√	7days
SMAJ14A	SMAJ14CA	14V	15.6	17.2	23.2V	17.2	√	7days
SMAJ15A	SMAJ15CA	15V	16.7	18.5	24.4V	16.4	√	7days
SMAJ16A	SMAJ16CA	16V	17.8	19.7	26.0V	15.4	√	7days
SMAJ17A	SMAJ17CA	17V	18.9	20.9	27.6V	14.5	√	7days
SMAJ18A	SMAJ18CA	18V	20.0	22.1	29.2V	13.7	√	7days
SMAJ20A	SMAJ20CA	20V	22.2	24.5	32.4V	12.3	√	7days
SMAJ22A	SMAJ22CA	22V	24.4	26.9	35.5V	11.3	√	7days
SMAJ24A	SMAJ24CA	24V	26.7	29.5	38.9V	10.3	√	7days
SMAJ26A	SMAJ26CA	26V	28.9	31.9	42.1V	9.5	√	7days
SMAJ28A	SMAJ28CA	28V	31.1	34.4	45.4V	8.8	√	7days
SMAJ30A	SMAJ30CA	30V	33.3	36.8	48.4V	8.3	√	7days
SMAJ33A	SMAJ33CA	33V	36.7	40.6	53.3V	7.5	√	7days
SMAJ36A	SMAJ36CA	36.0V	40.0	44.2	58.1V	6.9	√	7days
SMAJ40A	SMAJ40CA	40.0V	44.4	49.1	64.5V	6.2	√	7days
SMBJ43A	SMAJ43CA	43.0V	47.8	52.8	69.4V	5.8	√	7days
SMAJ45A	SMAJ45CA	45.0V	50.0	55.3	72.7V	5.5	√	7days
SMAJ48A	SMAJ48CA	48.0V	53.3	58.9	77.4V	5.2	√	7days
SMAJ51A	SMAJ51CA	51.0V	56.7	62.7	82.4V	4.9	√	7days
SMAJ54A	SMAJ54CA	54.0V	60.0	66.3	87.1V	4.6	√	7days
SMAJ58A	SMAJ58CA	58.0V	64.4	71.2	93.6V	4.3	√	7days
SMAJ60A	SMAJ60CA	60.0V	66.7	73.7	96.8V	4.1	√	7days
SMAJ64A	SMAJ64CA	64.0V	71.1	78.6	103.0V	3.9	√	7days
SMAJ70A	SMAJ70CA	70.0V	77.8	86.0	113.0V	3.5	√	7days
SMAJ75A	SMAJ75CA	75.0V	83.3	92.1	121.0V	3.3	√	7days
SMAJ78A	SMAJ78CA	78.0V	86.7	95.8	126.0V	3.2	√	7days
SMAJ85A	SMAJ85CA	85.0V	94.4	104.0	137.0V	2.9	√	7days
SMAJ90A	SMAJ90CA	90.0V	100	111.0	146.0V	2.7	√	7days
SMAJ100A	SMAJ100CA	100.0V	111	123.0	162.0V	2.5	√	7days
SMAJ110A	SMAJ110CA	110.0V	122	135.0	177.0V	2.3	√	7days
SMAJ120A	SMAJ120CA	120.0V	133	147.0	193.0V	2.1	√	7days
SMAJ130A	SMAJ130CA	130.0V	144	159.0	209.0V	1.9	√	7days
SMAJ150A	SMAJ150CA	150.0V	167	185.0	243.0V	1.6	√	7days
SMAJ160A	SMAJ160CA	160.0V	178	197.0	259.0V	1.5	√	7days
SMAJ170A	SMAJ170CA	170.0V	189	209.0	275.0V	1.5	√	7days
SMAJ180A	SMAJ180CA	180.0V	201	222.0	292.0V	1.4	√	7days
SMAJ190A	SMAJ190CA	190.0V	209	243.2	308.0V	1.3	√	7days
SMAJ200A	SMAJ200CA	200.0V	220	247.0	324.0V	1.2	√	7days
SMAJ210A	SMAJ210CA	210.0V	231	268.8	340.0V	1.2	√	7days
SMAJ220A	SMAJ220CA	220.0V	246	281.6	356.0V	1.1	√	7days
SMAJ250A	SMAJ250CA	250.0V	279	309.0	405.0V	1.0	√	7days
SMAJ300A	SMAJ300CA	300.0V	335	371.0	486.0V	0.8	√	7days
SMAJ350A	SMAJ350CA	350.0V	391	432.0	567.0V	0.7	√	7days
SMAJ400A	SMAJ400CA	400.0V	447	494.0	648.0V	0.6	√	7days
SMAJ440A	SMAJ440CA	440.0V	492	543.0	713.0V	0.6	√	7days
