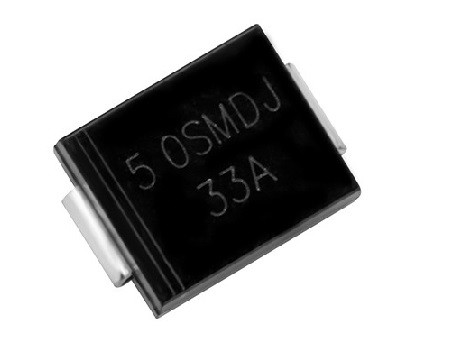

5.0SMDJ - 5000W

Package:  SMC
Power:  5000W
Voltage:  12V~170V

Datasheet

Description

Part Number		Reverse Stand-Off Voltage	Breakdown Voltage VBR(V)		Maximum Clamping Voltage	Peak Pulse Current	Certification	Delivery Time
Uni-Polar	Bi-polar	VRWM	Min	Max	VC	IPP(A)	UL	days
5.0SMDJ12A	5.0SMDJ12CA	12.0V	13.3	14.7	19.9V	252	√	15days
5.0SMDJ13A	5.0SMDJ13CA	13.0V	14.4	15.9	21.5V	233	√	15days
5.0SMDJ14A	5.0SMDJ14CA	14.0V	15.6	17.2	23.2V	216	√	15days
5.0SMDJ15A	5.0SMDJ15CA	15.0V	16.7	18.5	24.4V	205	√	15days
5.0SMDJ16A	5.0SMDJ16CA	16.0V	17.8	19.7	26.0V	193	√	15days
5.0SMDJ17A	5.0SMDJ17CA	17.0V	18.9	20.9	27.6V	181	√	15days
5.0SMDJ18A	5.0SMDJ18CA	18.0V	20.0	22.1	29.2V	172	√	15days
5.0SMDJ20A	5.0SMDJ20CA	20.0V	22.2	24.5	32.4V	155	√	15days
5.0SMDJ22A	5.0SMDJ22CA	22.0V	24.4	26.9	35.5V	141	√	15days
5.0SMDJ24A	5.0SMDJ24CA	24.0V	26.7	29.5	38.9V	129	√	15days
5.0SMDJ26A	5.0SMDJ26CA	26.0V	28.9	31.9	42.1V	119	√	15days
5.0SMDJ28A	5.0SMDJ28CA	28.0V	31.1	34.4	45.4V	110	√	15days
5.0SMDJ30A	5.0SMDJ30CA	30.0V	33.3	36.8	48.4V	103	√	15days
5.0SMDJ33A	5.0SMDJ33CA	33.0V	36.7	40.6	53.3V	93.9	√	15days
5.0SMDJ36A	5.0SMDJ36CA	36.0V	40.0	44.2	58.1V	86.1	√	15days
5.0SMDJ40A	5.0SMDJ40CA	40.0V	44.4	49.1	64.5V	77.6	√	15days
5.0SMDJ43A	5.0SMDJ43CA	43.0V	47.8	52.8	69.4V	72.1	√	15days
5.0SMDJ45A	5.0SMDJ45CA	45.0V	50.0	55.3	72.7V	68.8	√	15days
5.0SMDJ48A	5.0SMDJ48CA	48.0V	53.3	58.9	77.4V	64.7	√	15days
5.0SMDJ51A	5.0SMDJ51CA	51.0V	56.7	62.7	82.4V	60.7	√	15days
5.0SMDJ54A	5.0SMDJ54CA	54.0V	60.0	66.3	87.1V	57.5	√	15days
5.0SMDJ58A	5.0SMDJ58CA	58.0V	64.4	71.2	93.6V	53.5	√	15days
5.0SMDJ60A	5.0SMDJ60CA	60.0V	66.7	73.7	96.8V	51.7	√	15days
5.0SMDJ64A	5.0SMDJ64CA	64.0V	71.1	78.6	103.0V	48.6	√	15days
5.0SMDJ70A	5.0SMDJ70CA	70.0V	77.8	86.0	113.0V	44.3	√	15days
5.0SMDJ75A	5.0SMDJ75CA	75.0V	83.3	92.1	121.0V	41.4	√	15days
5.0SMDJ78A	5.0SMDJ78CA	78.0V	86.7	95.8	126.0V	39.7	√	15days
5.0SMDJ85A	5.0SMDJ85CA	85.0V	94.4	104	137.0V	36.5	√	15days
5.0SMDJ90A	5.0SMDJ90CA	90.0V	100	111	146.0V	34.3	√	15days
5.0SMDJ100A	5.0SMDJ100CA	100.0V	111	123	162.0V	30.9	√	15days
5.0SMDJ110A	5.0SMDJ110CA	110.0V	122	135	177.0V	28.3	√	15days
5.0SMDJ120A	5.0SMDJ120CA	120.0V	133	147	193.0V	26.0	√	15days
5.0SMDJ130A	5.0SMDJ130CA	130.0V	144	159	209.0V	24.0	√	15days
5.0SMDJ150A	5.0SMDJ150CA	150.0V	167	185	243.0V	20.6	√	15days
5.0SMDJ160A	5.0SMDJ160CA	160.0V	178	197	259.0V	19.3	√	15days
5.0SMDJ170A	5.0SMDJ170CA	170.0V	189	209	275.0V	18.2	√	15days
