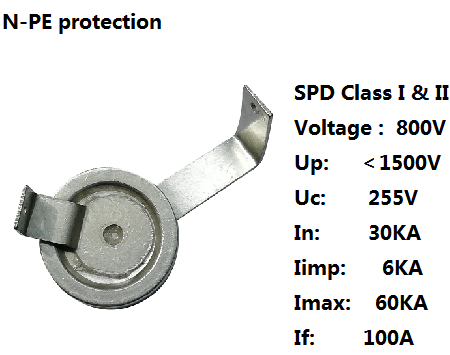

Φ16x4.0mm - H2R16-800xx

Dc spark-over voltage (100V/s)      1)

＞600V

Maximum impulse spark-over voltage  5KV/μs  (1.2/50us, 6KV)

1500V

Breakdown time

           - typical values

＜100ns

＜20ns

Insulation resistance @DC250V

  1000MΩ

Class I  according to IEC 61643-11

Max continuous operating voltage at 50/60 Hz           Uc

Nominal discharge current 8/20μs                               In

Impulse current 10/350μs                                             Iimp

Follow Current at 50/60Hz at 255V                               If

255V

30KA

6KA

100A

Class II  according to IEC 61643-11

Max continuous operating voltage at 50/60 Hz           Uc

Nominal discharge current 8/20μs                               In

Maximum discharge current 8/20μs                             Imax

Follow Current at 50/60Hz at 255V                               If

255V

30KA

60KA

100A

capacitance at 1MHz

＜5pF

Weight

~ 5g

UL 1449 Certification

On the UL List

Delivery time

20days

Operation and storage temperature

-40℃ … +90℃

Marking, Blue

1) At delivery AQL 0.65 level II Military Standard 105E.

2) Test according to IEC 61643 11

2R800 YY

800 - Nominal voltage

YY - Year of production
